Description:

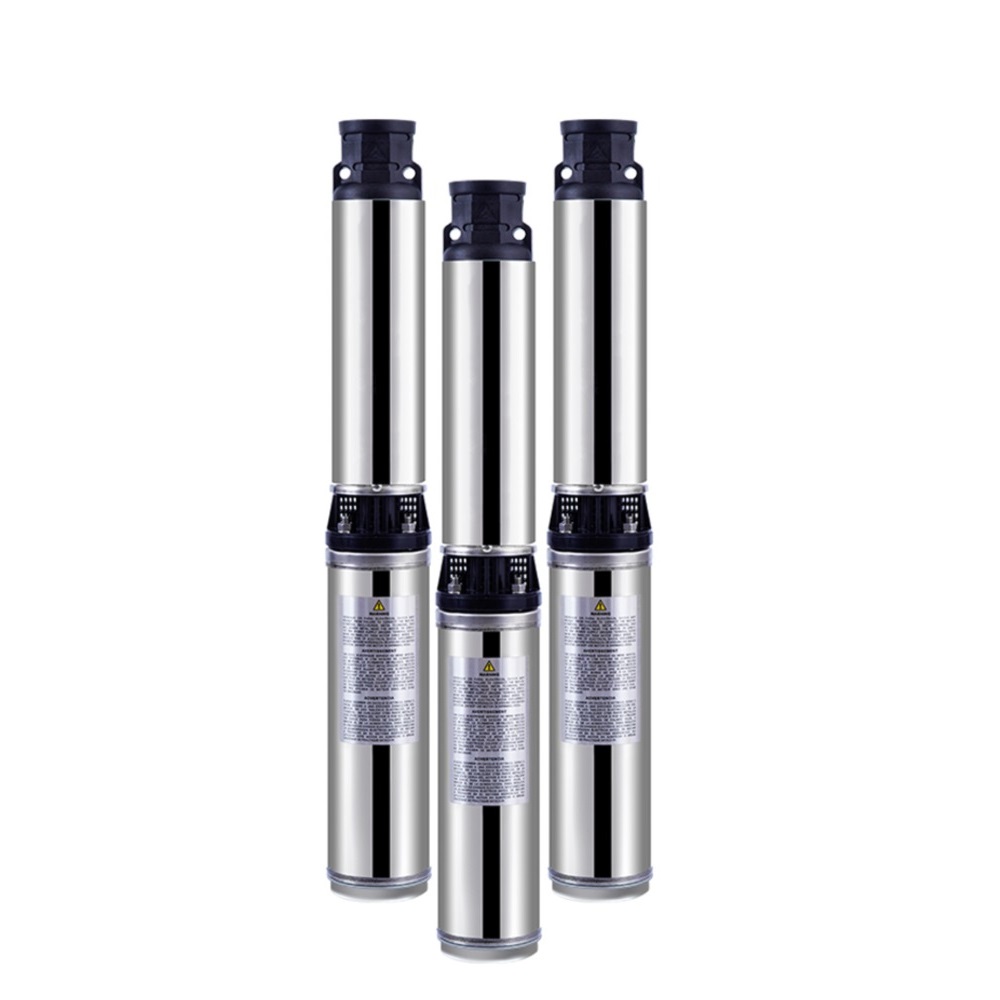

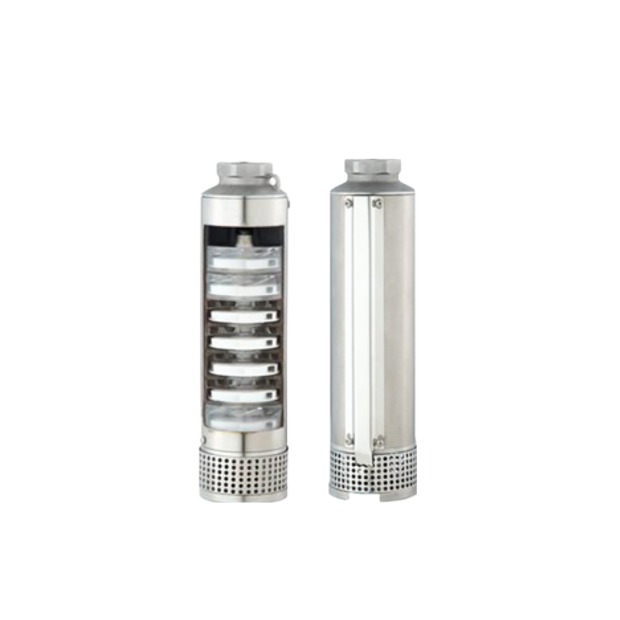

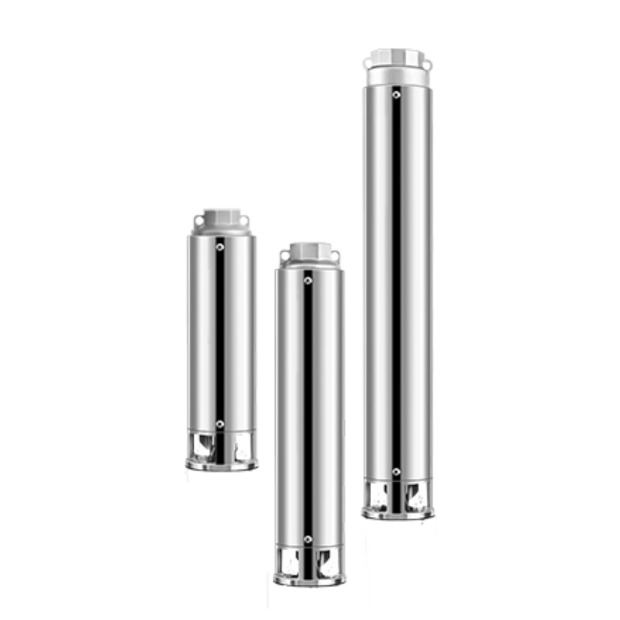

PumpMate's DP4" series submersible pumps are made of corrosion resistance and heavy duty SUS304 stainless steel, with plastic impeller (material PPO/Noryl) are FDA compliant. Offering hexagonal pump shaft with ceramic sleeve structured solid benefits for high sand handling capabilities and guarantees an effective impeller drive. The unique floating impellers designed for the pump against abrasion to grant a dependable performance and longer service life.
The hydraulic design is such to enhance the overall efficiency thus reducing energy consumption and making the pumping systems more cost effective.
Product Features:
1. All the metal parts of pump are made of SUS304 materials ensure high resistance to corrosion.
2. The pump body is covered by a SUS304 polished stainless steel casing for maximum corrosion resistance.
3. Pump mounted with motor by coupling, that is easy to install for costs saving.
4. Discharge head with built-in non-return valve to prevent water hammer condition to extend its lifecycle.
5. SUS304 strainer to restrict the entry of sand or others foreign materials.
Applications:
1. Raw water supply from deep well (borehole)
2. Pressure boosting for residential buildings
3. Agricultural irrigation and livestock watering system
4. Domestic/municipal/industrial water supply and distribution
5. Fountains applications
6. Fire fighting system
7. Dewatering
Operating conditions:
1. Maximum liquid temperature: 60°C
2. Maximum content of sand: 50gr/m³
Pumped liquids:
Clean, thin, non-aggressive or non-abrasive liquids.
